Command Line Reports

HTML Report

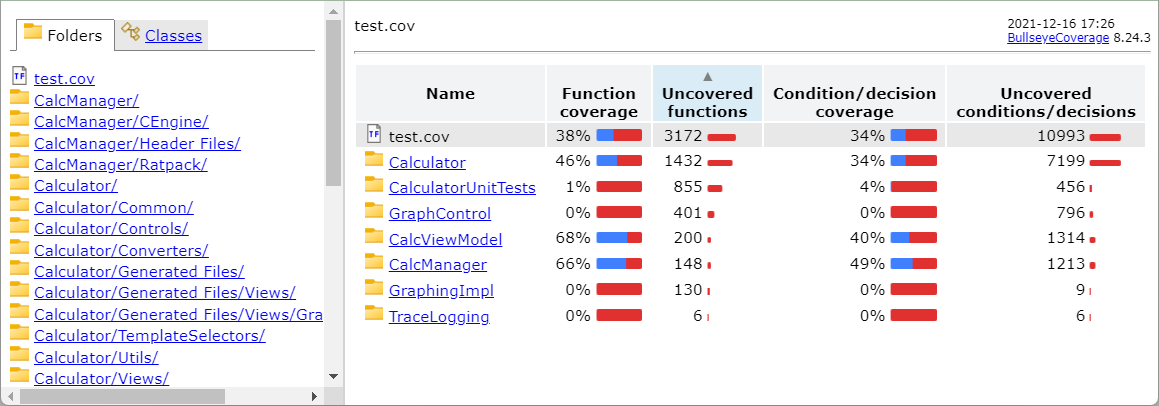

Use covhtml to generate HTML pages that you can navigate and sort similarly to the Coverage Browser.

HTML Example

Summary Reports

You can generate textual reports by directory, source file, C++ class/namespace, or function using the covdir, covsrc, covclass, or covfn command, respectively. By default, the reports are sorted first by the percentage of functions invoked, and then by the percentage of decisions and conditions covered.

Directory Summary Example

Directory      Function Coverage           C/D Coverage
---------  ---------------------  ---------------------
calc/          10 /    10 = 100%      21 /    50 =  42%
expr/          19 /    19 = 100%      87 /   111 =  78%
---------  ---------------------  ---------------------
Total          29 /    29 = 100%     108 /   161 =  67%

Source Summary Example

Source                   Function Coverage           C/D Coverage
-------------------  ---------------------  ---------------------
calc/Calculator.cpp       2 /     2 = 100%      10 /    33 =  30%
expr/main.cpp             1 /     1 = 100%       2 /     6 =  33%
calc/CalcCore.cpp         7 /     7 = 100%      11 /    17 =  64%
expr/Parser.cpp          14 /    14 = 100%      40 /    58 =  68%
expr/Lexer.cpp            3 /     3 = 100%      45 /    47 =  95%
calc/CalcCore.h           1 /     1 = 100%       0 /     0
expr/Lexer.h              1 /     1 = 100%       0 /     0
-------------------  ---------------------  ---------------------
Total                    29 /    29 = 100%     108 /   161 =  67%

Class Summary Example

Class           Function Coverage           C/D Coverage
----------  ---------------------  ---------------------
CalcCore::       8 /     8 = 100%      11 /    17 =  64%
Parser::        14 /    14 = 100%      40 /    58 =  68%
Lexer::          4 /     4 = 100%      45 /    47 =  95%
----------  ---------------------  ---------------------
Total           26 /    26 = 100%      96 /   122 =  78%

Function Summary Example

Function                             Source           Line      Function Coverage           C/D Coverage
-----------------------------------  ---------------------  ---------------------  ---------------------
Parser::logical_and_expression()     expr/Parser.cpp   194       1 /     1 = 100%       1 /     6 =  16%
main(int,char*[])                    expr/main.cpp       8       1 /     1 = 100%       2 /     6 =  33%
Parser::logical_or_expression()      expr/Parser.cpp   204       1 /     1 = 100%       3 /     6 =  50%
Parser::equality_expression()        expr/Parser.cpp   147       1 /     1 = 100%       2 /     4 =  50%
Lexer::unitTest()                    expr/Lexer.cpp      9       1 /     1 = 100%       1 /     2 =  50%
Parser::unitTest()                   expr/Parser.cpp     5       1 /     1 = 100%       1 /     2 =  50%
Parser::and_expression()             expr/Parser.cpp   164       1 /     1 = 100%       1 /     2 =  50%
Parser::exclusive_or_expression()    expr/Parser.cpp   174       1 /     1 = 100%       1 /     2 =  50%
Parser::inclusive_or_expression()    expr/Parser.cpp   184       1 /     1 = 100%       1 /     2 =  50%
Parser::expression()                 expr/Parser.cpp   214       1 /     1 = 100%       1 /     2 =  50%
Parser::primary_expression()         expr/Parser.cpp    35       1 /     1 = 100%       4 /     6 =  66%
Parser::multiplicative_expression()  expr/Parser.cpp    62       1 /     1 = 100%       9 /    10 =  90%
Lexer::read(Token&)                  expr/Lexer.cpp     45       1 /     1 = 100%      44 /    45 =  97%
Lexer::unitTest(const char*)         expr/Lexer.cpp     38       1 /     1 = 100%       0 /     0
Lexer::Lexer(const char*)            expr/Lexer.h       41       1 /     1 = 100%       0 /     0
Parser::Parser(const char*)          expr/Parser.cpp    30       1 /     1 = 100%       0 /     0
Parser::additive_expression()        expr/Parser.cpp    90       1 /     1 = 100%       4 /     4 = 100%
Parser::shift_expression()           expr/Parser.cpp   107       1 /     1 = 100%       4 /     4 = 100%
Parser::relational_expression()      expr/Parser.cpp   124       1 /     1 = 100%       8 /     8 = 100%
-----------------------------------  ---------------------  ---------------------  ---------------------
Total                                                           19 /    19 = 100%      87 /   111 =  78%

Source Code Report

Use covbr to see details about which specific control structure conditions were not covered. By default, covbr displays coverage for the entire project. Since this is usually a large amount of information, you may wish to pipe the output through more.

covbr | more

The detail report is an annotated listing of the source file. In the left margin, arrows --> indicate incomplete coverage and the letters X, T, F, t, and f indicate coverage which has occurred. Uninteresting sections are replaced by "...". For example, the command covbr calc2.c:main produces the following.

expr/main.cpp:
  ...
        5  #include "Lexer.h"
        6  #include "Parser.h"
        7
X       8  int main(int argc, char *argv[])
        9  {
       10      try {
       11          Lexer::unitTest();
       12          Parser::unitTest();
       13          std::string line;
-->F   14          if (argc > 1) {
-->    15              for (int i = 1; i < argc; i++) {
       16                  line += argv[i];
       17                  line += " ";
       18              }
  ...
       22          }
       23          Parser parser(line.c_str());
       24          std::cout << parser.expression() << std::endl;
X      25      }
-->    26      catch (const char *s) {
       27          std::cerr << s;
       28      }
       29      return 0;
  ...

This shows the function main was invoked, the condition !feof(stdin) on line 269 evaluated to both true and false, the decision on line 272 evaluated only to false, the decision tested on line 273 was never encountered, and the decision on line 276 evaluated only to true.

Reducing Output with Regions

By default, BullseyeCoverage shows coverage for the entire project. You can reduce the amount of output by specifying regions. For example, the command covfn expr/Lexer.cpp shows only the functions in that source.

Function                      Source          Line  FnCov           C/D Coverage
----------------------------  --------------------  -----  ---------------------
Lexer::unitTest()             expr/Lexer.cpp     9  1 / 1       1 /     2 =  50%
Lexer::read(Token&)           expr/Lexer.cpp    45  1 / 1      44 /    45 =  97%
Lexer::unitTest(const char*)  expr/Lexer.cpp    38  1 / 1       0 /     0
----------------------------  --------------------  -----  ---------------------
Total                                                100%      45 /    47 =  95%

Sometimes after building a large project, you discover functions, classes, or source files which you do not want BullseyeCoverage to report. With the command line programs you can exclude regions from reports by specifying those regions prefixed with !.

Argument Files

All the BullseyeCoverage commands automatically process an argument file with the same name as the command, but with suffix .cfg. BullseyeCoverage reads options from each of the locations below, in order.

  1. BullseyeCoverage/bin
  2. The home directory, named by the USERPROFILE environment variable on Windows, HOME on Unix-like systems.

The example commands below show how you could create an argument file for covdir to use verbose mode.

echo -v >%USERPROFILE%\covdir.cfg        ← Windows
echo -v >$HOME/covdir.cfg                ← Unix-like systems
